273 - nozzle & duct (heater, air conditioner) (Denso) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

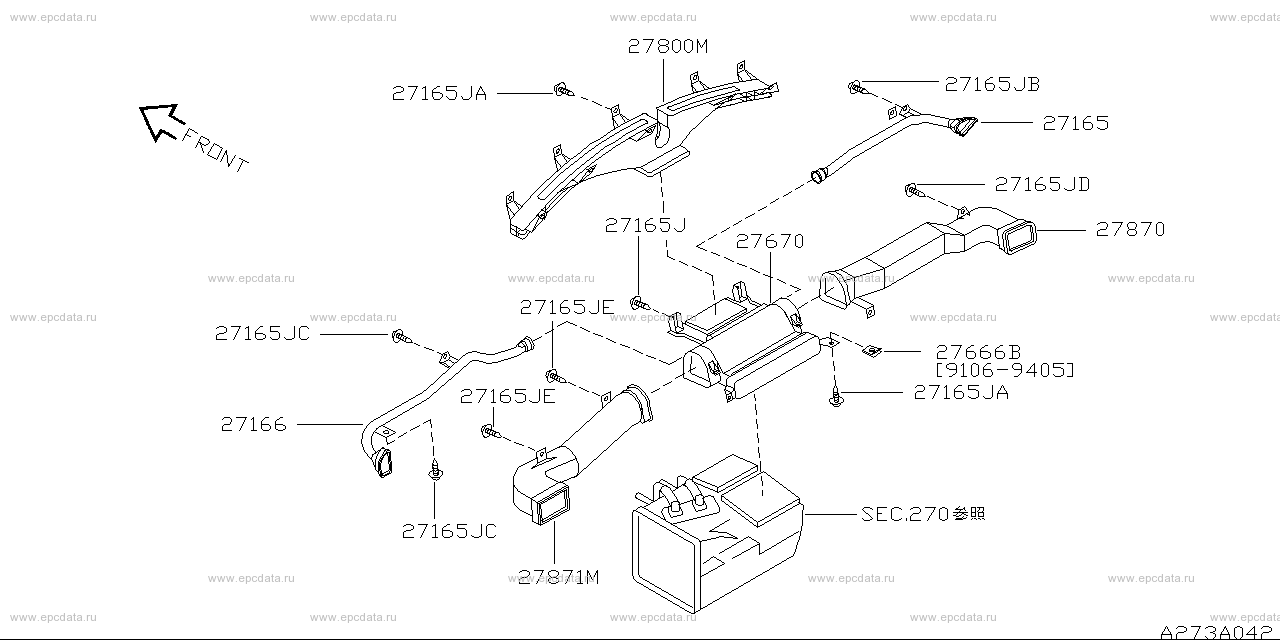

Applies for models	Manufacture period	Spec
W	08.1995 - 01.1997	フロント ヒーター ダクト
W	01.1997 - 01.1998	フロント ヒーター ダクト
W	01.1998 - ...	フロント ヒーター ダクト

Open full screen picture Up to the top

27165 - duct, demister RH 27165J - screw 27165JA - screw 27165JB - screw 27165JC - screw 27165JD - screw 27165JE - screw 27166 - duct, demister LH 27666B - nut 27670 - duct, ventilator center 27800M - nozzle, defroster 27870 - duct, side ventilator driver 27871M - duct, side ventilator assist

---

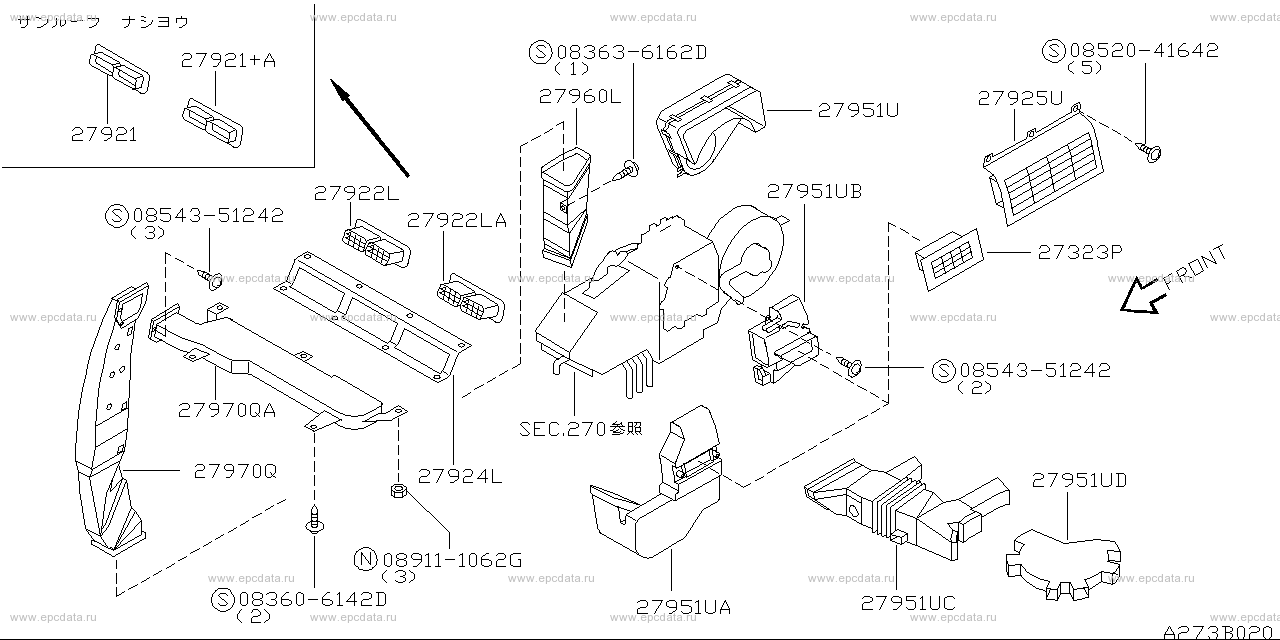

Applies for models	Manufacture period	Spec
W	08.1995 - 01.1997	リヤ ヒーター ダクト

Open full screen picture Up to the top

083606142D 083636162D 0852041642 0854351242 089111062G 27323P - grille, rear duct 27921 - mask, rear cooler grille 27921+A - mask, rear cooler grille 27922L - grille assembly, rear cooler outlet 27922LA - grille assembly, rear cooler outlet 27924L - bracket, rear cooler grille 27925U - grille 27951U - duct 27951UA - duct 27951UB - duct 27951UC - duct 27951UD - duct 27960L - duct, ventilator rear lower 27970Q - duct 27970QA - duct

---

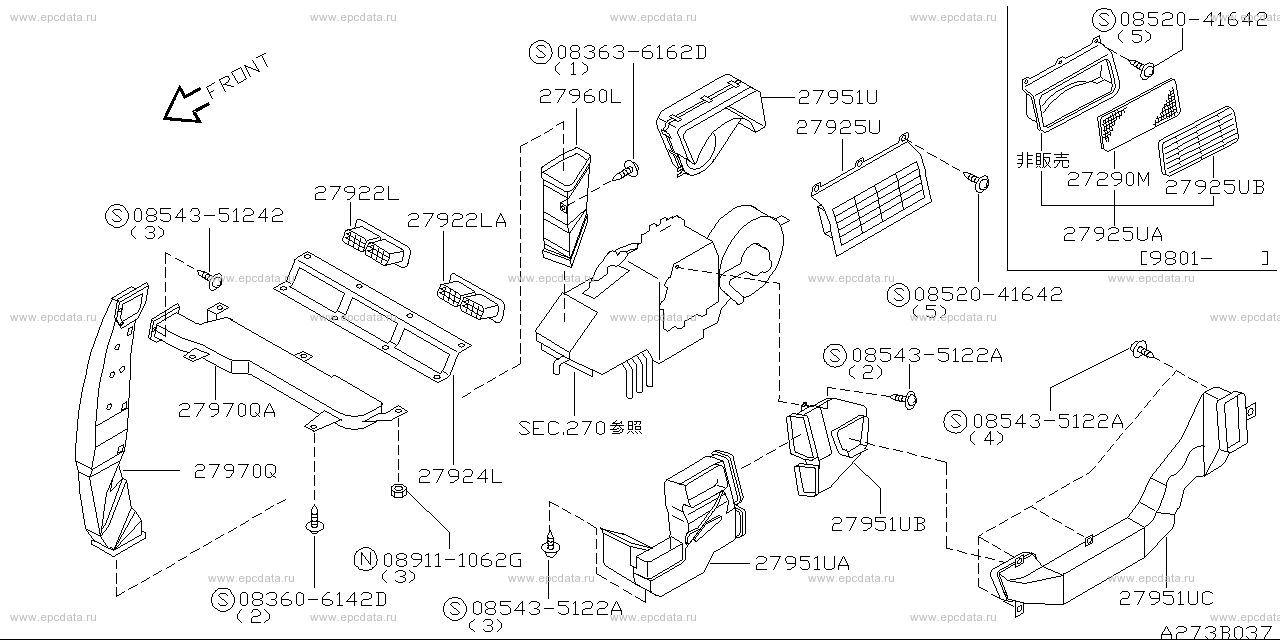

Applies for models	Manufacture period	Spec
W	01.1997 - 01.1998	リヤ ヒーター ダクト
W	01.1998 - ...	リヤ ヒーター ダクト

Open full screen picture Up to the top

083606142D 083636162D 0852041642 085435122A 0854351242 089111062G 27290M - net 27922L - grille assembly, rear cooler outlet 27922LA - grille assembly, rear cooler outlet 27924L - bracket, rear cooler grille 27925U - grille 27925UA - grille 27925UB - grille 27951U - duct 27951UA - duct 27951UB - duct 27951UC - duct 27960L - duct, ventilator rear lower 27970Q - duct 27970QA - duct

Vanette Serena KVC23
